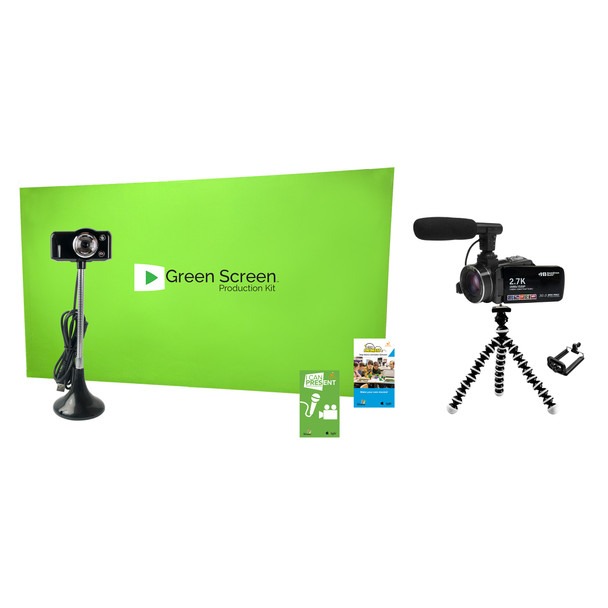

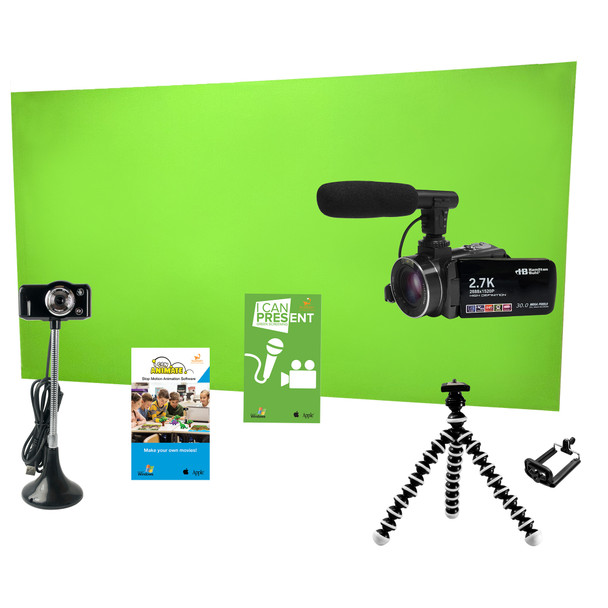

Media Production Studio Kit – Large

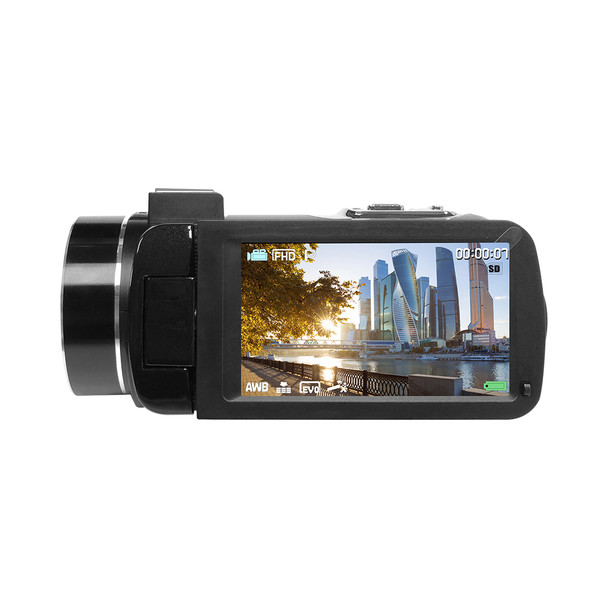

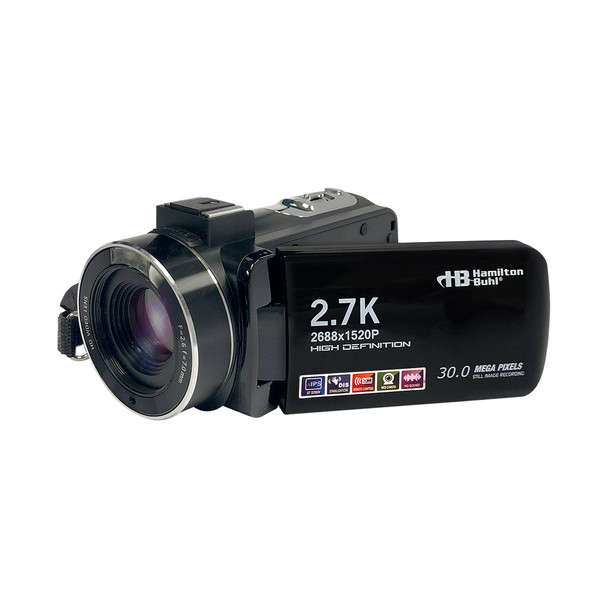

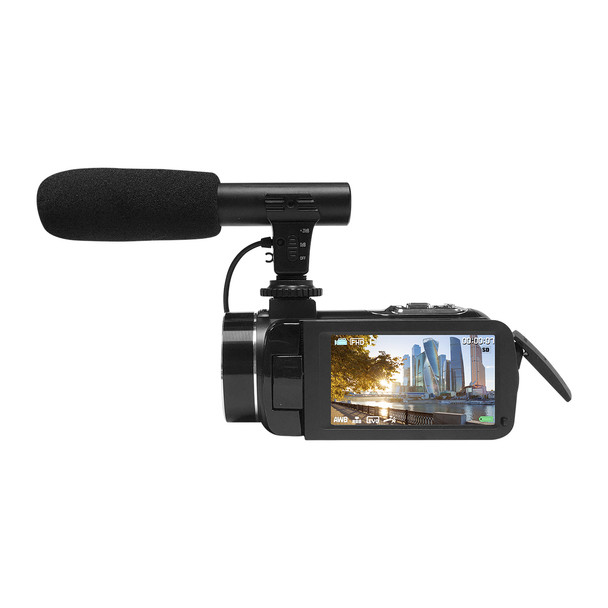

HDV17BK Digital Video Camera Specifications:

• Video File Format: AVI
• Video Resolution: 2.7K (2699x1520), FHD (1920x1080), HD (128-x720), VGA (640x480)
• Zoom: 18x digital
• Fixed Lens: F/2.6, f=7.0mm
• Focal Range: 1mm~Infinity
• Storage Media: Supports C10 (or higher) SD Card, Max. 128GB
• Image Sensor: 30 Megapixels with 8M CMOS
• Image Resolution:48M (8000x6000), 30M (6400x4800), 24M (5600x4200), 20M (5200x3900), 16M (4608x3456), 12M (4000x3000), 10M (3648x2736), 8M (3264x2448), 7MHD (3648x2048), 5M (2592x1944), 3M (2048x1536)
• Still File Format: JPG
• Built-in LED light
• Face detection, anti-shake, self-timer and auto-power off
• Language: Supports multiple languages
• Screen: 3.0" IPS display with 270° rotation
• PC Interface: Mini USB 2.0 Port (USB cable Included)
• TV Output: Mini-HDMI (HDMI cable not included)
• Rechargeable lithium-Ion battery (included separately, need to install)

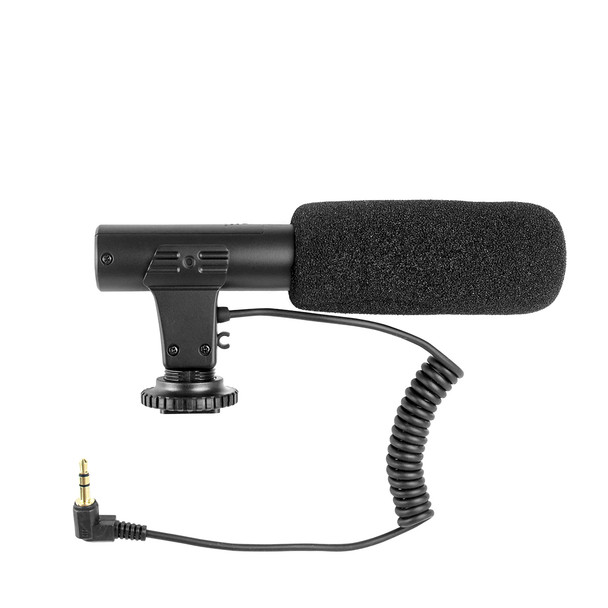

HDV17-MIC Specifications:

• Monomer: Electrostatic Capacitor Head
• Pointing Feature: Super Heart Pointing
• Frequency Response: 50Hz-16KHz
• Sensitivity Enhancement: +20dB ±2dB
• Sensitivity: -45dB ±3dB (0dB=1V/Pa @1KHz)
• Equivalent Noise Level: 24dB (A)
• Maximum Sound Pressure Level: 130dB (THD≤1.5% @1KHz)
• Output Impedance: 200Ω ±30% @1KHz
• Channel: Mono
• Voltage: “AAA” 1.5V Alkaline battery
• Power Consumption: ≤ 5mA (typical)
• Battery Life: Approx. 60 hours with new battery

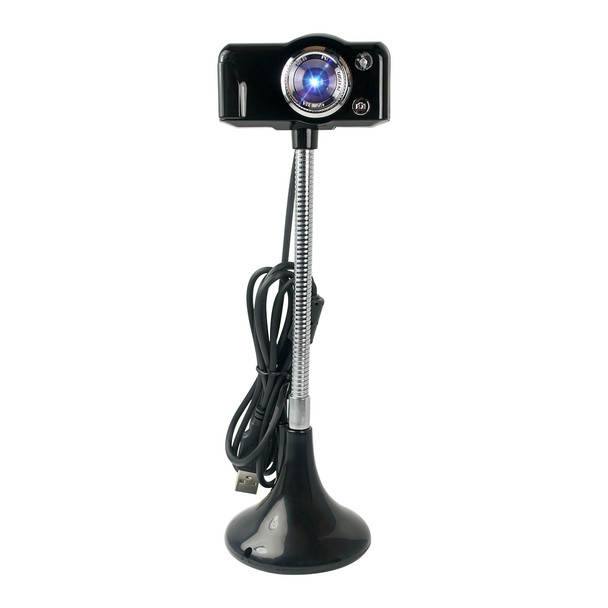

WebCam Specifications:

• Bendable arm allows for optimal positioning
• Internal Microphone
• Non-slip base
• 1x IR LED light: Infrared light for shooting at night and in low light areas
• Shutter button: Easy capture for still images
• Compatible with Chromebook, PC with Windows Windows XP, XP2, Vista, Win 7/8/10, and Mac with standard USB-a ports
• 5MP CMOS sensor
• Maximum resolution: 1080 x 720
• Rate: 30FPS @720p
• Interface type: USB 2.0 high speed
• Focal range: 30mm ~ Infinity
• Captured image format: BMP, JPEG, PNG
• Captured video format: AVI, WMV
• Working temperature: 14° ~ 104°
• Materials: ABS plastic
• Cable length: approx. 4’

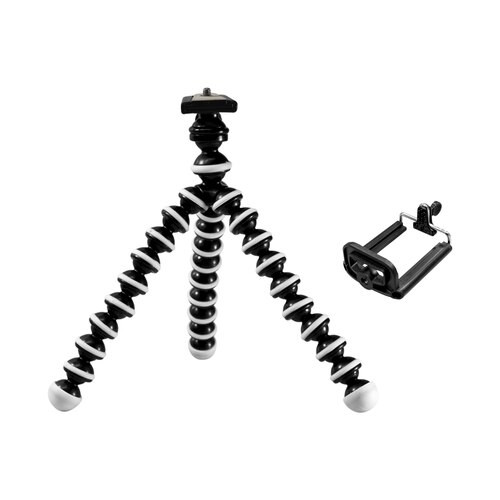

Universal Tripod TPOD18 Specifications:

• Material: ABS, Rubber
• Maximum load: 1 lbs
• Cameras interface: universal 1/4-20 screw.
• Tripod is lightweight and easy to use.
• Works with smartphones (Apple or Android) in all size, cameras, webcams (we suggest you take your phone case off when using clamp).
• The unique design allows you to secure your compact digital camera and video camera.
• Flexible tripod can stand or wrap around base on almost any surface.

• 1 x Flexible Tripod, 1 x Universal Clip, 1 x Universal Clip Mounting Plate
• Height with Phone Mount - 9.5 inches
• Height without Phone Mount – 6.5 inches
• Max Phone Mount Width - 3.3 inches
• Min Phone Mount Width - 2.2 inches

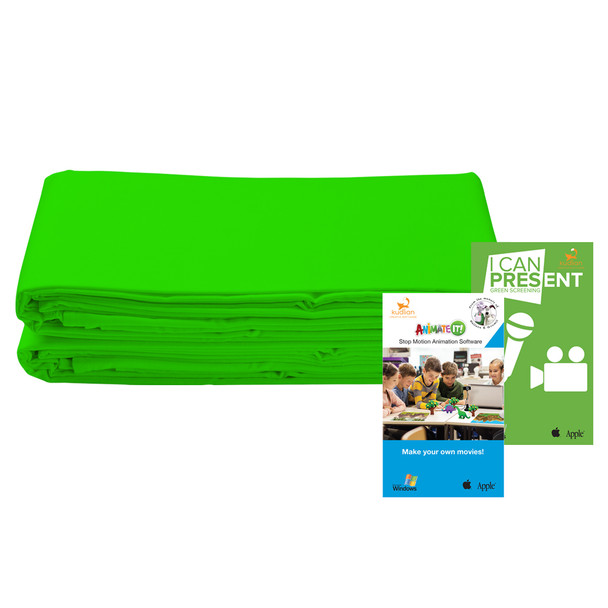

• Size: 9' x 60"
• Color: Green
• Material: Highly saturated 100% polyester

I Can Present Software Specifications:

Powerful editing software with teleprompter, split screen, picture-in-picture, scroll text features, chromakeying and more!

General Requirements

1. Minimum of 1GB of free memory
2. Minimum Screen Size: 1024 x 768 Pixels
3. USB Webcam - included with HB Green Screen Production Kit

• Windows PC Users - Minimum Recommended System Requirements:

1. A PC running Windows XP SP2 or later, Windows Vista or Windows 7.
2. Windows XP requires .Net Framework 3.5 SP2, available as a free download from Microsoft's website.
3. 30MB of free Hard Disk space.


• Mac Users - Minimum Recommended System Requirements:

1. Mac OS X 10.5 to Mojave 10.14.x  (NOT AVAILABLE FOR CATALINA OS)
2. 228 MB of Hard Disk space.
• NOTE: Jan-2020 Update - We are working as quickly and diligently as possible to ensure we have an upgraded version for the newly released Catalina (MAC OS 10.15) in as short a time as possible.

 HB Animation Studio Specifications:

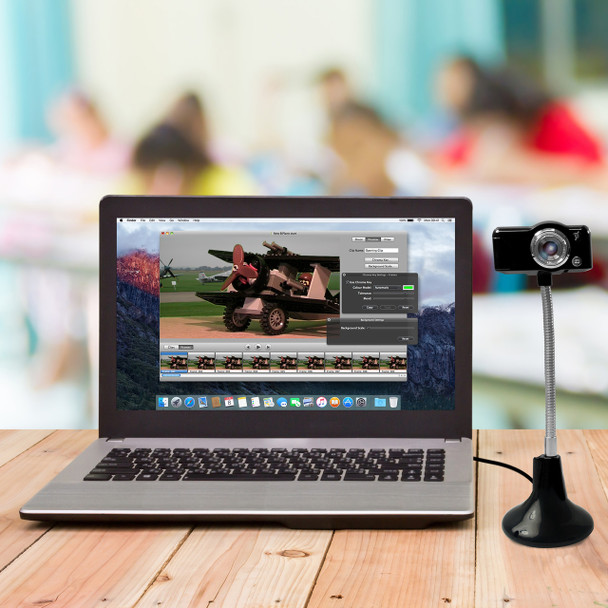

The Animation Studio Kit includes a 5MP, 30FPS, gooseneck webcam with a non-slip base and Animate It! stop motion animation software, developed by the award-winning makers of "Wallace & Gromit."

Software features include:

• Capture from any webcam
  Use the software to take images using a USB webcam to create animation
• Import Audio
  Add an audio clip from your music library or record directly from the included webcam microphone
• Drawing
  Add 2D shapes to animations or as a masking tool
• Import Video Images
  Import both still images and video to use as a background in animations
• Titles
  Add the movie feel with titles, subtitles and credits
• Time Lapse
  Set up the camera and use the time lapse setting to record action over a long period of time
• Cross Platform
  Whether using a Windows or Mac computer, Animate It!

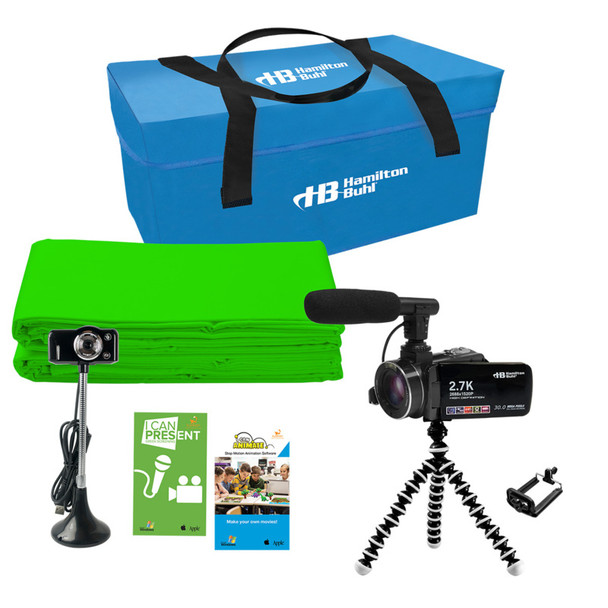

Carry Case specifications:

• Durable, plastic construction
• 20" x 10" x 10"
• 3.02 lbs.
• Recessed carry handle
• Lockable (lock not included)
